CC-Link IE Line Up

Servos y variadores de velocidad

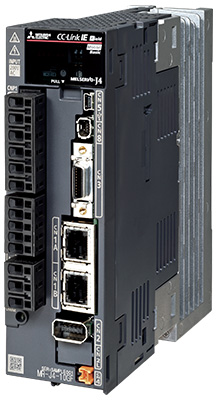

CC-Link IE Field Network compatible servo amplifier

CC-Link IE Field Network function embedded
With a master module, the servo amplifier can perform positioning operations just as easy as I/O operations, by using the point table method (positioning operations are performed based on the point table No. and start signal, without using a positioning module)
Combined with the Simple Motion module, the servo amplifier can perform synchronous and interpolation control, in addition to speed and torque control

Model^*1	Voltage class	Salida nominal	Lazo de control totalmente cerrado	Compatible servo motor
Model^*1	Voltage class	Salida nominal	Lazo de control totalmente cerrado	giratorio	Lineal	Direct drive
MR-J4-□GF	200 V	0,1…22 kW	●	●	●	●
MR-J4-□GF4	400 V	0,6…22 kW	●	●	●	-
MR-J4-□GF1	100 V	0,1…0,4 kW	●	●	●	●
MR-J4-□GF-RJ	200 V	0,1…22 kW	●	●	●	●
MR-J4-□GF4-RJ	400 V	0,6…22 kW	●	●	●	-
MR-J4-□GF1-RJ	100 V	0,1…0,4 kW	●	●	●	●

*1."□" in the model name denotes rated output. For further details about model name, please refer to the "MELSERVO-J4 catalog (L(NA)03058ENG)".

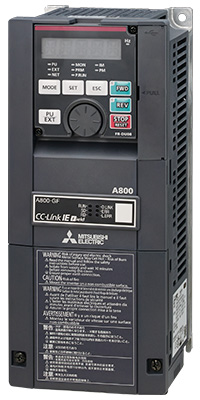

CC-Link IE Field Network compatible inverter

CC-Link IE Field Network function embedded^*2
High-speed communication of CC-Link IE Field Network realizes various inverter operations to be monitored at a fast rate (multiple monitoring and parameter reading/writing can also be executed simultaneously improving maintainability)
Seamless network environment enables monitoring and setup of inverters from the IT system

Model^*3	Voltage class	capacidad	Structure/functionality
FR-A820-□K-GF	200 V	0,4…90 kW	Standard model
FR-A840-□K-GF	400 V	0,4…280 kW	Standard model
FR-A842-□K-GF	400 V	315…500 kW	Separated converter type

*2.The CC-Link IE Field Network communication option (FR-A8NCE) is also available (applicable models: FR-A800 and FR-F800 Series inverters). For details, please refer to the "Inverter option catalog (L(NA)06054ENG)".
*3."□" in the model name denotes rated output. For further details about model name, please refer to the "FR-A800 catalog (L(NA)06075ENG)".
