CC-Link IE Field Basic Line Up

Servos y variadores de velocidad

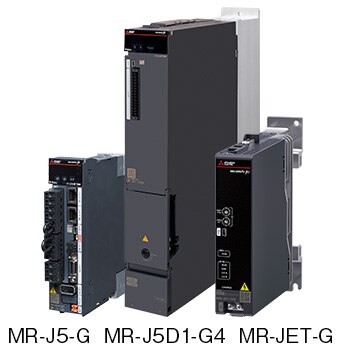

AC Servo MELSERVO-J5/MELSERVO-JET Series

CC-Link IE Field Network Basic-compatible master stations can control MR-J5-G/MR-J5D1-G4/MR-JET-G servo amplifiers
The servo amplifier can be operated as a CANopen® device via a link device
The profile mode (position/velocity/torque) and the positioning mode (point table) are supported
The servo amplifier newly supports the line topology^*1

*1.When a device which does not support the line topology is used, the line/star mixed topology is applicable.

Model^*2	Voltage class	Salida nominal	Fully closed loop	Compatible servo motor
Model^*2	Voltage class	Salida nominal	Fully closed loop	giratorio	Lineal	Direct drive
MR-J5-□G	200 V	0,1…7,0 kW	●	●	●	●
MR-J5-□G-RJ	200 V	0,1…7,0 kW	●	●	●	●
MR-J5-□G4	400 V	0,6…3,5 kW	●	●	Future support	-
MR-J5-□G4-RJ	400 V	0,6…3,5 kW	●	●	Future support	-
MR-J5D1-□G4	400 V	1,0…7,0 kW	●	●	-	-
MR-JET-□G	200 V	0,1…3,0 kW	-	●	●	-

*2.“□” in the model name denotes rated output. For more information, please refer to “MELSERVO-J5 catalog (L(NA)03179ENG)” or “MELSERVO-JET catalog (L(NA)03187ENG)” .

AC Servo MELSERVO-J4/MELSERVO-JE Series

CC-Link IE Field Network Basic function embedded
With the drive system supporting CiA 402 drive profile, positioning systems are configured easily without a Positioning module

Model^*3	Voltage class	Salida nominal	Fully closed loop	Compatible servo motor
Model^*3	Voltage class	Salida nominal	Fully closed loop	giratorio	Lineal	Direct drive
MR-J4-□GF	200 V	0,1…22 kW	●	●	●	●
MR-J4-□GF4	400 V	0,6…22 kW	●	●	●	-
MR-J4-□GF1	100 V	0,1…0,4 kW	●	●	●	●
MR-J4-□GF-RJ	200 V	0,1…22 kW	●	●	●	●
MR-J4-□GF4-RJ	400 V	0,6…22 kW	●	●	●	●
MR-J4-□GF1-RJ	100 V	0,1…0,4 kW	●	●	●	-
MR-JE-□C	200 V	0,1…3 kW	-	●	-	-

*3.“□” in the model donates rated output. For further details about model name, please refer to the “MELSERVO-J4 catalog (L(NA)03058ENG)” or “MELSERVO-JE catalog (L(NA)03086ENG)”.

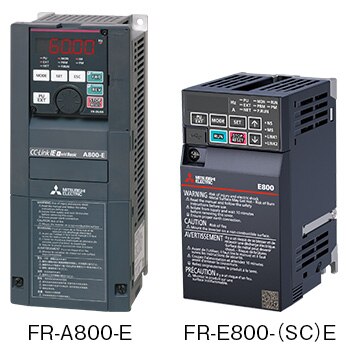

Inverter FREQROL-A800/A800 Plus/F800/E800 Series

CC-Link IE Field Network Basic function embedded
CC-Link IE Field Network Basic realizes various inverter operations to be monitored at a fast rate (multiple monitoring and parameter reading/writing can also be executed simultaneously improving maintainability)
Seamless network environment enables monitoring and setup of inverters from the IT system
Standard Ethernet is supported without installing a plug-in option, realizing a low cost system easily

Model^*4	Voltage class	capacidad	Structure/functionality
FR-A820-□K-E	Three-phase 200 V	0,4…90 kW	Standard model
FR-A840-□K-E	Three-phase 400 V	0,4…280 kW	Standard model
FR-A842-□K-E	Three-phase 400 V	315…500 kW	Separated converter type
FR-A846-□K-E	Three-phase 400 V	0,4…132 kW	IP55 compatible model
FR-F820-□K-E	Three-phase 200 V	0,75…110 kW	Standard model
FR-F840-□K-E	Three-phase 400 V	0,75…315 kW	Standard model
FR-F842-□K-E	Three-phase 400 V	355…560 kW	Separated converter type
FR-F846-□K-E	Three-phase 400 V	0,75…160 kW	IP55 compatible model
FR-E820-□KE	Three-phase 200 V	0,1…22 kW	Ethernet specifications model
FR-E840-□KE	Three-phase 400 V	0,4…22 kW	Ethernet specifications model
FR-E820S-□KE	Single-phase 200 V	0,1…2,2 kW	Ethernet specifications model
FR-E820-□KSCE	Three-phase 200 V	0,1…22 kW	Safety communication model
FR-E840-□KSCE	Three-phase 400 V	0,4…22 kW	Safety communication model
FR-E820S-□KSCE	Single-phase 200 V	0,1…2,2 kW	Safety communication model

*4.“□” in the model name denotes rated output. For further details about model name, please refer to the “FR-A800 catalog (L(NA)06075ENG)”, “FR-F800 catalog (L(NA)06085ENG)”, and “FR-E800 catalog (L(NA)-06131ENG)”.
