MELSERVO-J5 Series Rotary Servo Motor

Designación del modelo

img-mv-1-sm
  • Feature
  • Especificación
  • Normas
  • Discontinued
Contenido

HK-KT Series (Low Inertia, Small Capacity) (Note 2)

Designación de modelos de la serie HK-KT
  • Notas:
  • 1.The dimensions are the same regardless of whether or not an oil seal is installed.
  • 2.This section describes what each symbol in a model name indicates. Algunas combinaciones de símbolos no están disponibles.
  • 3.A geared servo motor with an oil seal installed is not available.
  • 4.The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.

HK-MT Series (Ultra-Low Inertia, Small Capacity) (Note 2)

Designación de modelos de la serie HK-MT
Notas:
  1. 1.The dimensions are the same regardless of whether or not an oil seal is installed.
  2. 2.This section describes what each symbol in a model name indicates. Algunas combinaciones de símbolos no están disponibles.
  3. 3.The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.

HK-ST Series (Medium Inertia, Medium Capacity) (Note 2)

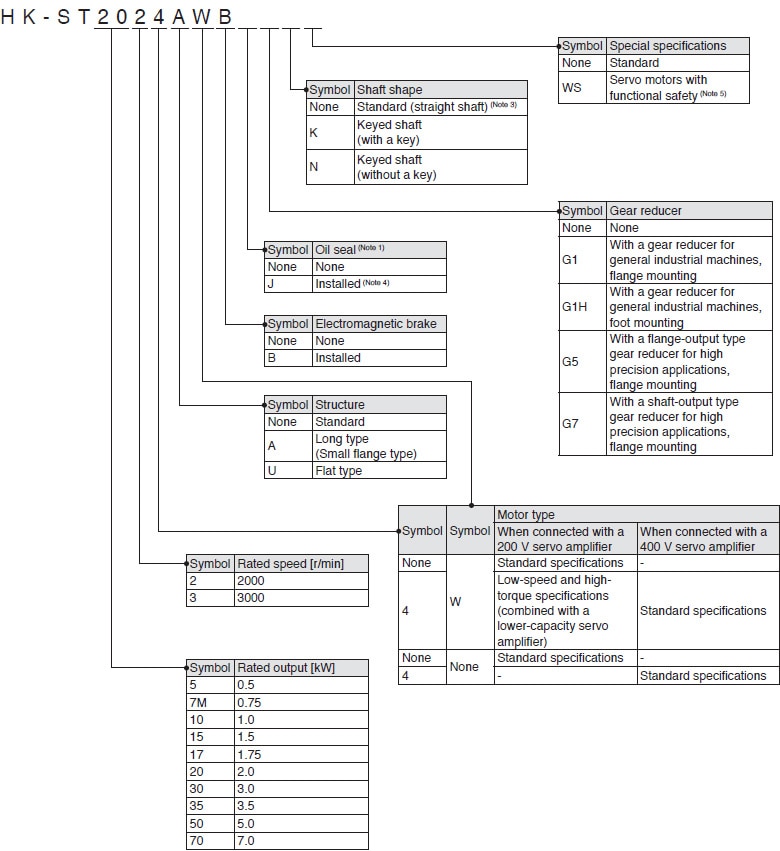

Designación de modelos de la serie HK-ST
  • Notas:
  • 1.The dimensions are the same regardless of whether or not an oil seal is installed.
  • 2.This section describes what each symbol in a model name indicates. Algunas combinaciones de símbolos no están disponibles.
  • 3.The standard HK-ST G1/G1H servo motors have a keyed shaft (with a key).
  • 4.A geared servo motor with an oil seal installed is not available.
  • 5.The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.

HK-RT Series (Ultra-Low Inertia, Medium Capacity) (Note 2)

Designación de modelos de la serie HK-RT
  • Notas:
  • 1.The dimensions are the same regardless of whether or not an oil seal is installed.
  • 2.This section describes what each symbol in a model name indicates. Algunas combinaciones de símbolos no están disponibles.
  • 3.The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.

HK-JT series (Low Inertia, Medium/Large Capacity) (Note 1)NEW

Model Designation HK-JT Series
  • Notas:
  • 1.This section describes what each symbol in a model name indicates. Algunas combinaciones de símbolos no están disponibles.
  • 2.The dimensions of the servo motors with functional safety are the same as those of the standard servo motors.
  • 3.Available only with the servo motors with the rated speed of 1500 r/min.
  • 4.Oil seal is installed in HK-JT series as standard.
